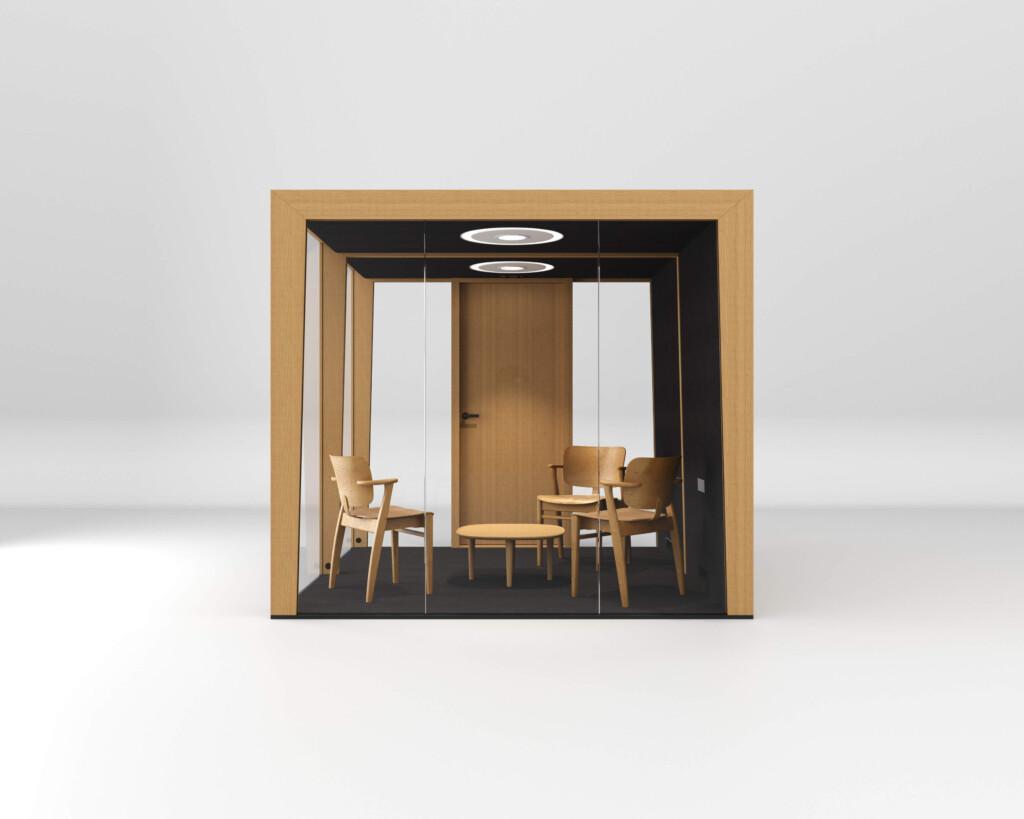

MODULE TEAM
A meeting room with efficient soundproofing for 2–6 participants.
Module Team provides a peaceful and pleasant setting for making good decisions.
The soundproofed pod keeps surrounding office noises outside. Disturbing noises cannot enter the space, and the slanted walls and the vertical pillars create good acoustics. Efficient ventilation ensures that there is fresh air throughout your meeting, and the glare-free indirect lighting makes meetings a pleasant experience.
Module Team guarantees more efficient meetings by providing an undisturbed environment in which you can focus on the agenda.
STRUCTURES
EXAMPLES
Product information
FEATURES
Ventiltion
Adjustable, max. 80 l/s
Lighting
Adjustable LED lighting 300 lx, colour temperature 4200 K
Fittings
4x Socket
4x USB-port
Electricity
Electrical connection 230 v 50 HZ 10A (lighting supply power)
Connector cable with plug, cable length 5 m (CEE7/7 GST18)
Mobility
Can be moved assembled.
Can also be disassembled and reassembled.
ACCESSORIES
Additional lighting
Adjustable LED spotlight 12v/25W 500 lx, colour temperature 4200 K
LAN plug
RJ45 (replaces USB-A ports)
DIMENSIONS
Exterior dimensions
Width
2410 mm
Height
2160 mm (2230 mm on raised floor)
Please note! Installation height min. 2280 mm (2350 mm)
Depth
2550 mm
Interior Dimensions
Width
Team #1 2150 mm
Team #2 and #3 2250 mm
Height
1995 mm
Depth
2486 mm
Door
9x21M, left- or right-handed
Weight
890 kg
MATERIALS
Pillars and beams
White and black
– MDF
– Finish: High-pressure laminate
Oak vaneer
– Euro oak
– Finish: Water-based matt lacquer
Wall panels, exterior surfaces
White and black
– MDF
– Finish: Lacquered
Glass
6+6 mm Sound Control, PVB-laminated safety glass
Door
Wooden door
ABLOY ACTIVE door handles with an antimicrobial coating that kills up to 99.99% of harmful microbies.
Interior walls and ceiling
Acoustic panel
– Blazer LTH40 (dark grey)
– Blazer LTH61 (light grey)
Sound absorption class A
Panel 100% PET (50% recycled PET)
OEKOTEX Standard 100
Fabric 100% wool
Carpet
Balance 99
– Black
– 100% polyamide
– Anti-static, dust-free and allergy-friendly
DELIVERY
Delivered as elements.
Installation available.
WARRANTY
2 years
